Heavy-duty frame construction, high tractive effort and the ability to have the tail piece integrated into the main frame make our Feeder Breakers the perfect fit for longwall development sections.

Features

  • Unlimited

    Hydraulically-adjustable ground clearance

  • Freedom

    High tractive effort achieved with torque hub planetary crawler drive

  • Packed

    Large intake hopper capacity and high throughput rate

  • Shear pin or torque-limiting coupling breaker drivetrain protection

  • Hydraulic, hydro-mechanical or electro-mechanical conveyor drives are available depending on application parameters and operation’s preference

  • Chromium Carbide Overlay coal line

  • Customised hopper capacity design to suit application

  • Hopper sideboards

  • Shovelnose, 3-way dump, or face hauler hopper end

  • Integral mounted belt tail roller with stabilizing hydraulic cylinders

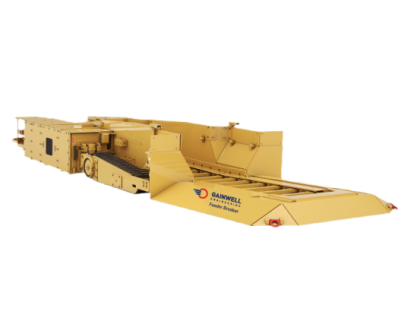

Model Specifications -  GFB110

model1
Discharge rate Up to 1633 tonnes/hour 1,800 tons/hour
Pick force 27,200 kg 60,000 lb
Tram speed 47ft/min 14m/min
Overall Length 33 ft 9 in 10.28 m
Overall Width 10 ft 4-3/4 in 3.17 m
DOWNLOAD BROCHURE arrow-1
