Built for the Toughest Loads
SHIELD HAULER
SHIELD HAULER
Our extensive product line is geared to match the varying application and capacity needs of mines around the world. The goal is simple, to move equipment, supplies and materials from one location to another with speed, safety and precision.
Industry-proven drive units, diesel engines and other major components from the world's leading OEM manufacturers.

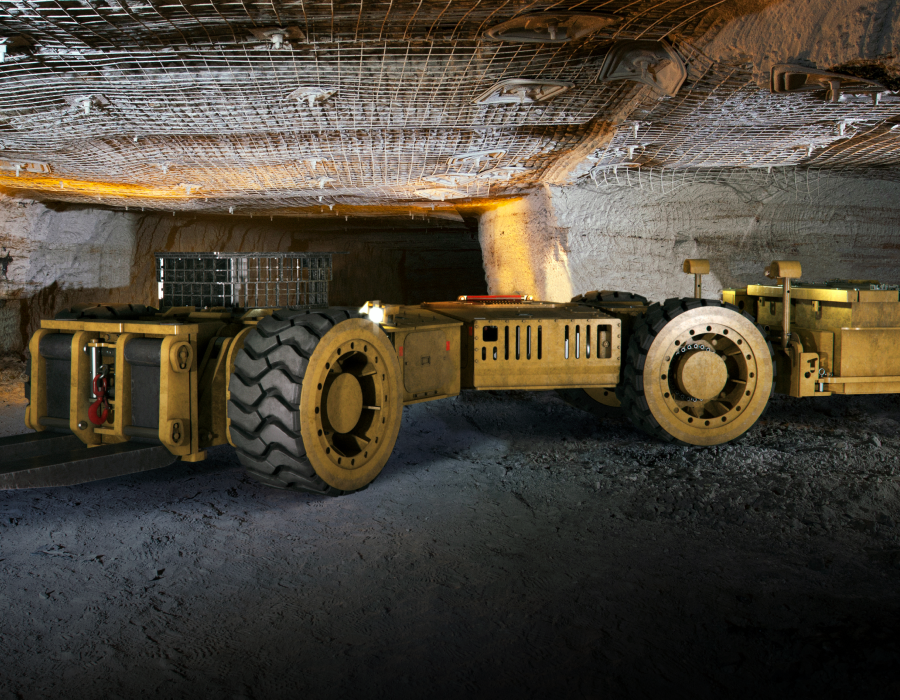

Diesel-powered roof support carriers carry your roof supports the full distance at maximum speed and lowest cost.
General body air emissions are one of the lowest in the field, and the fact that they are compact, powerful machines with a small roadway presence and the capability to be used for multiple tasks means a high return on investment.

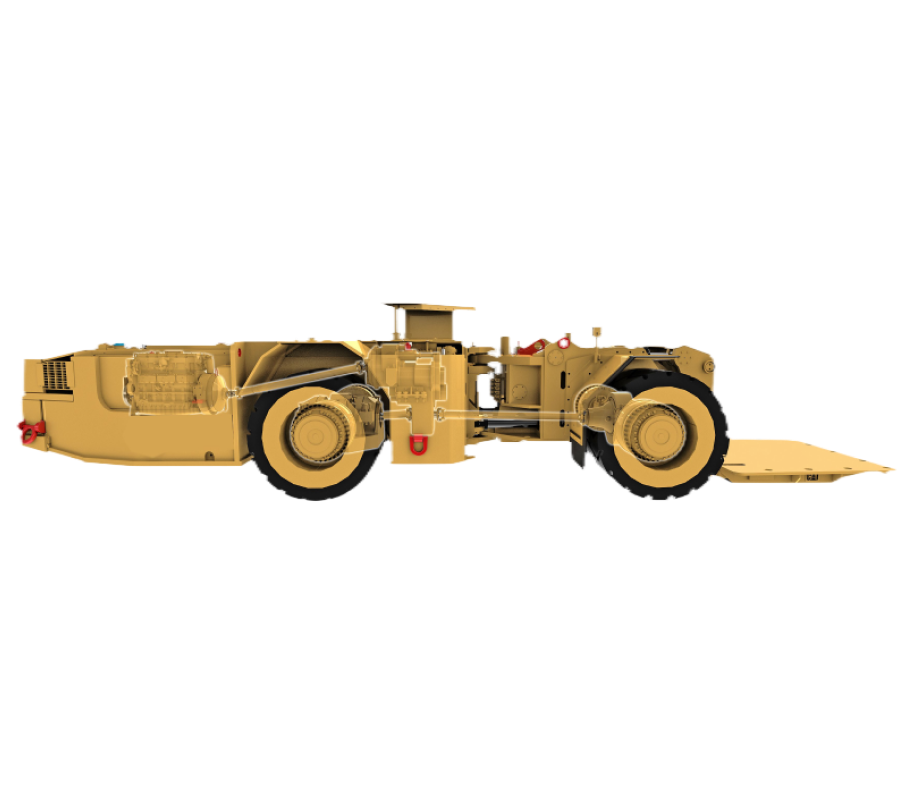

The four-wheel drive and rear engine arrangement are designed to offer high stability and high tractive effort whether loaded or unloaded on the roadway or installing roof supports at the longwall face.
| Length | 391.2” | 9940 mm |
| Width | 123.2” | 3130 mm |
| Cab Height (min) | 78” | 1980 mm |
| Ground clearance | 13.4” | 340 mm |
| Power | 230 HP | 172 kW |
| Weight | 105821 lb | 48000 kg |
| Capacity(Lift SAE @ 600 mm (23.6 in) from Fork Face) | 121250 lb | 55000 kg |
| Length | 378.3” | 9610 mm |
| Width | 102.4” | 2600 mm |
| Cab Height (min) | 72.4” | 1840 mm |
| Ground clearance | 14.1” | 360 mm |
| Power | 230 HP | 172 kW |
| Weight | 90390 lb | 41000 kg |
| Capacity(Lift SAE @ 600 mm (23.6 in) from Fork Face) | 88184 LB | 40000 kg |
| Length | 226.8” | 5760 mm |
| Width | 139” | 3530 mm |
| Cab Height (min) | - | |
| Ground clearance | 9.8” | 250 mm |
| Power | - | |
| Weight | 30864 lb | 14000 kg |
| Capacity(Lift SAE @ 600 mm (23.6 in) from Fork Face) | 44092 lb | 20000 kg (Standard winch capacity) |
